國標鋁套
添加時間：2018-12-22 14:47:39
瀏覽次數：1073

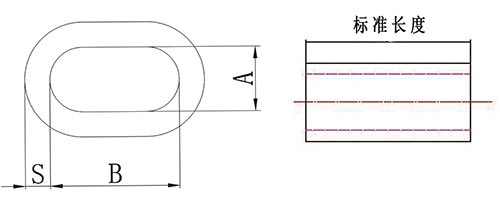

| 鋼索直徑 (MM) |
鑰套尺寸(MM) |
允許公差(內孔) (MM) |
標準長度 (MM) |
重量 |
| A |
B |
s |
| 6 |
11.6 |
18.2 |
6.6 |
±0.15 |
25 |
6.98 |
| 7 |
13.6 |
21.4 |
7.8 |
±0.15 |
30 |
11.44 |
| 8 |
15.4 |
24.2 |
8.8 |
±0. 20 |
34 |
16.6 |
| 9 |
17.3 |
27.2 |
9.9 |
±0. 20 |
38 |
23.5 |
| 10 |
19.1 |
30.0 |
10.9 |
±0. 20 |
42 |
31.68 |
| 11 |
21.1 |
33.2 |
12.1 |
±0. 30 |
47 |
43.2 |
| 12 |
23.0 |
36.2 |
13.2 |
±0. 30 |
50 |
54.5 |
| 13 |
25.0 |
39.2 |
14.2 |
±0. 30 |
55 |
71.4 |
| 14 |
26.9 |
42.2 |
15.3 |
±0. 30 |
59 |
88.5 |
| 16 |
30.9 |
48.4 |
17.5 |
±0. 30 |
67 |
132.8 |
| 18 |
34.8 |
54.4 |
19.6 |
±0. 30 |
76 |
191.8 |
| 20 |
38.5 |
60.2 |
21.7 |
±0. 30 |
84 |
260.4 |
| 22 |
42.7 |
67.0 |
24.3 |
±0. 40 |
92 |
349 |
| 24 |
46.4 |
72.8 |
26.4 |
±0. 40 |
101 |
452 |
| 26 |
50.3 |
78.8 |
28.5 |
±0. 70 |
109 |
576.2 |
| 28 |
54.5 |
85.4 |
31 |
±0. 70 |
118 |
726 |
| 30 |
58.1 |
91.2 |
33 |
±0. 70 |
126 |
882 |
| 32 |
62 |
97.2 |
35.2 |
±0. 70 |
134 |
1074 |
| 34 |
66.2 |
104 |
37.8 |
±0. 70 |
143 |
1300 |
| 36 |
69.8 |
109.6 |
39.8 |
±0. 70 |
152 |
1538 |
| 38 |
73.5 |
115.4 |
41.9 |
±0. 70 |
160 |
1808 |
| 40 |
77.2 |
121.1 |
44 |
±1. 50 |
168 |
2080 |
| 42 |
81.2 |
127.4 |
46.2 |
±1.50 |
176 |
2423 |
| 44 |
85 |
133.4 |
48.4 |
±1.50 |
184 |
2765 |
| 46 |
89 |
139.6 |
50.6 |
±1.50 |
192 |
3175 |
| 48 |
92.8 |
145.6 |
52.8 |
±1.50 |
200 |
3583 |
| 50 |
96.6 |
151.6 |
55.0 |
±1.50 |
208 |
4055 |
| 52 |
100.4 |
157.6 |
57.2 |
±1.50 |
216 |
4700 |
| 54 |
104.4 |
163.8 |
59.4 |
±1.50 |
224 |
5088 |
| 56 |
108.2 |
169.8 |
61.6 |
±1.50 |
232 |
5649 |
| |
114.4 |
179.6 |
65.2 |
±1.50 |
240 |
6419 |
| 248 |
6944 |
