T(8)級BW型卸扣
添加時間:2018-12-14 14:51:20
瀏覽次數(shù):1017
額定載荷 (t) |

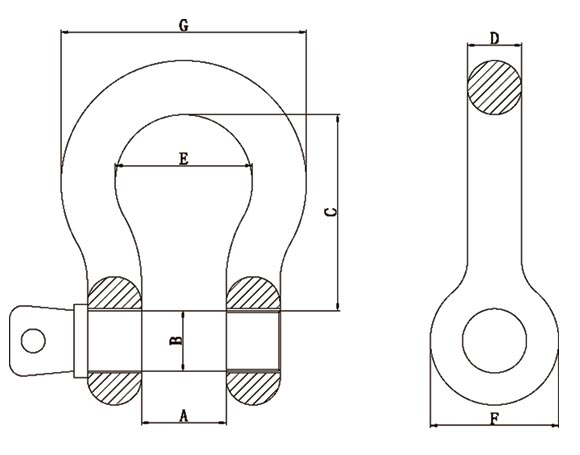

尺寸 (mm) |
重量(kg) |
A |
B |
C |
D |
E |
F |
G |
3.25 |
21 |
16 |
48 |
13 |
33 |
30 |
59 |
0.35 |
5 |
27 |
19 |
61 |
16 |
43 |
38 |
75 |
0.65 |
7 |
32 |
23 |
71.5 |
19 |
51 |
46 |
89 |
1.01 |
9.5 |
37 |
25 |
84 |
22.5 |
58 |
53 |
103 |
1.7 |
12.5 |
43 |
29 |
95 |
25.5 |
68 |
60.5 |
119 |
2.5 |
15 |
46 |
32 |
108 |
30 |
74 |
68.5 |
134 |
3.4 |
18 |
52 |
35 |
119 |
33 |
83 |
76 |
147 |
4.6 |
21 |
57 |
38 |
133 |
36 |
92 |
84 |
162 |
6.2 |
30 |
60.5 |
42 |
146 |
39 |
99 |
92 |
175 |
7.7 |
40 |
73 |
51 |
178 |
47 |
127 |
106.5 |
216 |
12.9 |
50 |
83 |
57 |
197 |
53 |
146 |
122 |
248 |
20.5 |
80 |
105 |
70 |
267 |
69 |
184 |
144.5 |
317 |
37.6 |
110 |
135 |
83 |
330 |
76 |
200 |
165 |
352 |
57 |
140 |
145 |
95 |
372 |
92 |
229 |
203 |
413 |
113 |
