產品介紹:
規格 : 6-60MM

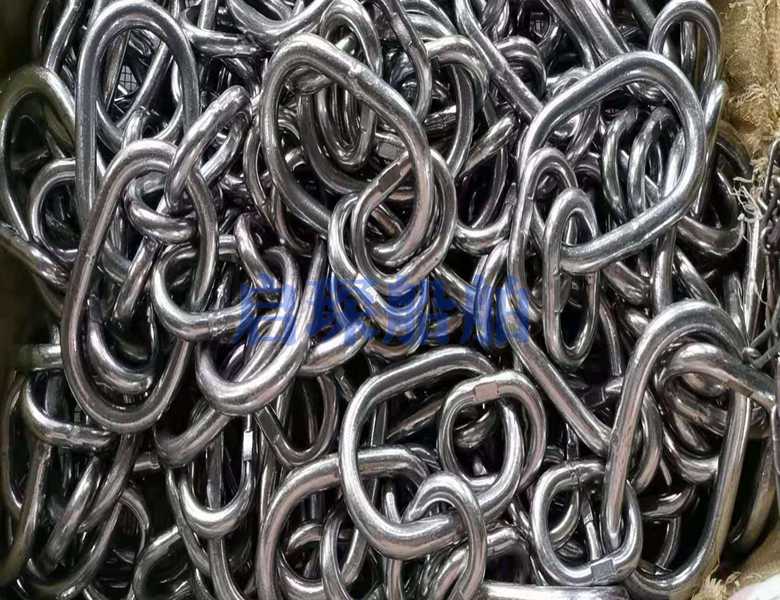

產品類別: 不銹鋼有檔鏈條和不銹鋼無檔鏈條
表面處理 : 拋光
證書 : 工廠證書 , CCS BV
德國DIN5685標準 | ||||||
尺寸 Diameter |
內長 inside length |
外寬 outside width |
重量100M weight per 100M |
工作負荷 working load limit |
破斷負荷 breaking load |
等級 Grade |
MM | MM | MM | KG | N | N | |
2 | 12 | 8 | 7 | 500 | 1250 | A |
22 | 6 | C | ||||
2.5 | 14 | 10 | 11 | 750 | 2000 | A |
24 | 10 | C | ||||
3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
26 | 15 | C | ||||
3.5 | 18 | 14 | 22.4 | A | ||
28 | 20 | C | ||||
4 | 19 | 16 | 30 | 2000 | 5000 | A |
32 | 27 | C | ||||
4.5 | 20 | 18 | 39.5 | A | ||
34 | 35 | C | ||||
5 | 21 | 20 | 50 | 3150 | 7750 | A |
35 | 43 | C | ||||
6 | 24 | 24 | 73 | 4500 | 11500 | A |
42 | 63 | C | ||||
7 | 28 | 28 | 100 | 6000 | 15000 | A |
49 | 86 | C | ||||
8 | 32 | 32 | 130 | 8000 | 20000 | A |
52 | 110 | C | ||||
9 | 36 | 36 | 165 | 10000 | 25000 | A |
59 | 141 | C | ||||
10 | 40 | 40 | 205 | 10000 | 25000 | A |
65 | 175 | C | ||||
11 | 44 | 40 | 205 | 12500 | 31000 | A |
72 | 211 | C | ||||
12 | 48 | 48 | 290 | 18000 | 45000 | A |
78 | 255 | C | ||||
13 | 52 | 52 | 345 | 21200 | 53000 | A |
82 | 295 | C |
