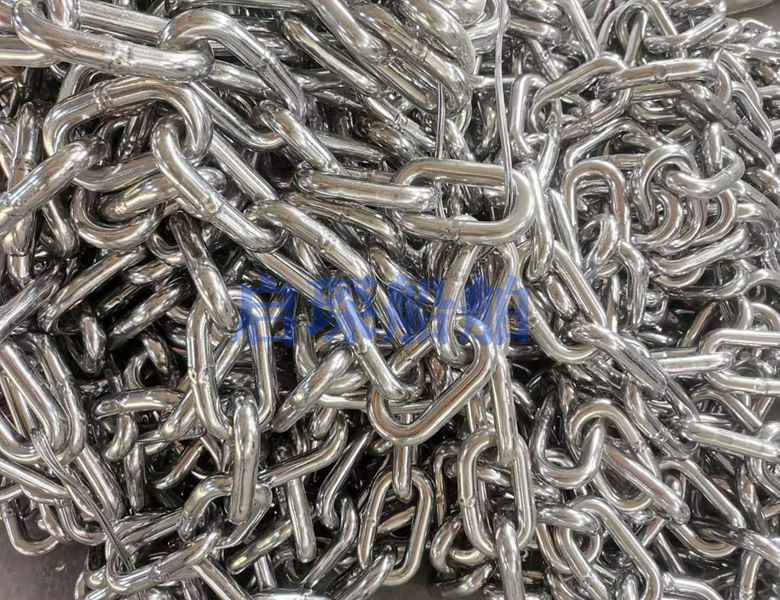

產品介紹:
規格 : 6-60MM
產品類別: 不銹鋼有檔鏈條和不銹鋼無檔鏈條
表面處理 : 拋光
證書 : 工廠證書 , CCS BV
韓國標準鏈條 Korean type chain | |||||
尺寸 Diameter |
材料尺寸 mm |
內長 insidelengthmm/M |
內寬 insidewidthmm/M |
重/M weight/M(KG) |
|
SHORTLINK | 3 | 3 | 23 | 5.5 | 4.5 |
4 | 4 | 22 | 7.5 | 9 | |
5 | 4.8 | 23.7 | 8.3 | 12.74 | |
6 | 5.8 | 27.3 | 10 | 18.86 | |
7 | 7 | 31 | 12 | 14.14 | |
8 | 7.8 | 35 | 13.7 | 17.23 | |
9 | 8.8 | 39 | 15.2 | 22.13 | |
12 | 12 | 38 | 18 | 45 | |
15 | 15 | 45 | 23 | 75.45 | |
16 | 16 | 53 | 23 | 76.41 | |
19 | 19 | 58 | 25 | 72.28 | |
LONGLINK | 4 | 3.9 | 34.3 | 6.2 | 7.26 |
4.5 | 4.5 | 44.4 | 9.2 | 9.46 | |
5 | 4.8 | 45 | 11 | 11.31 | |
6 | 6 | 47 | 12 | 18 | |
7 | 6.8 | 50 | 11.4 | 11.19 | |
12 | 12 | 50 | 18 | 42 | |
15 | 14.8 | 64 | 23 | 61.44 | |
19 | 10 | 75 | 25 | 71 |
